Tutorial: Java in 10 Minutes

This is a short tutorial with the Java Driver and ArangoDB. In less than 10 minutes you can learn how to use ArangoDB Java driver in Maven and Gradle projects.

Project configuration

To use the ArangoDB Java driver you need to import 2 libraries into your project:

In a Maven project you need to add the following dependencies to pom.xml:



    com.arangodb
    arangodb-java-driver
    ...


    com.arangodb
    jackson-dataformat-velocypack
    ...


while in a Gradle project you will add the following to build.gradle:

dependencies {
  implementation 'com.arangodb:arangodb-java-driver:...'
  implementation 'com.arangodb:jackson-dataformat-velocypack:...'
}

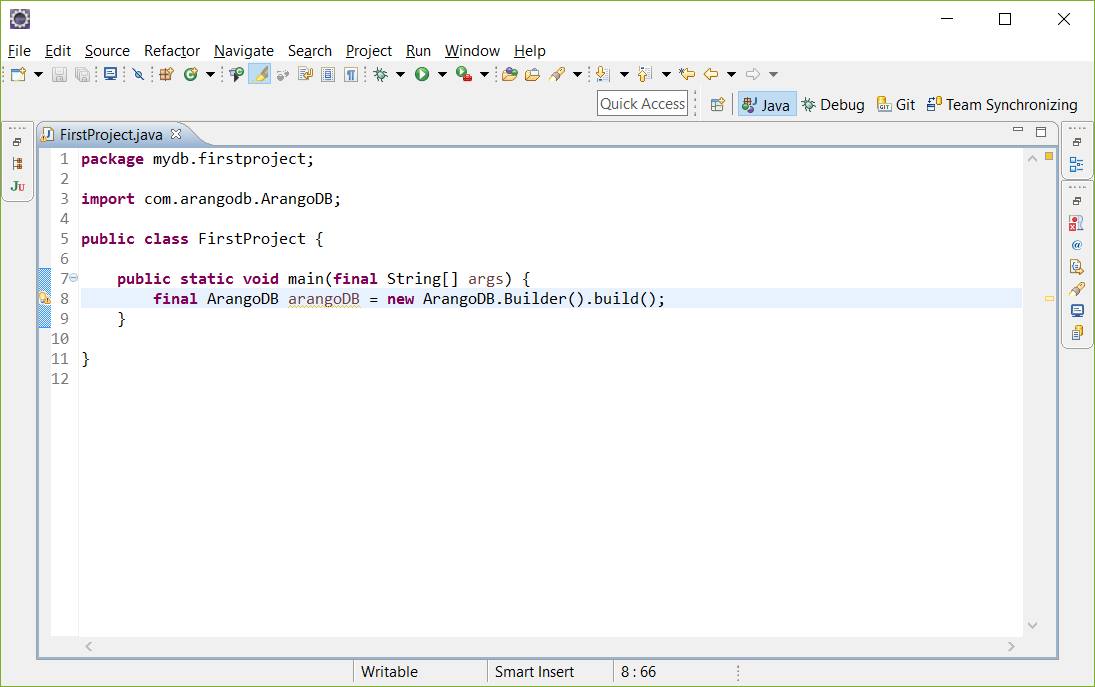

Connection

Let’s configure and open a connection to start ArangoDB.

ArangoDB arangoDB = new ArangoDB.Builder()
  .serializer(new ArangoJack())
  .build();
The default connection is to http://127.0.0.1:8529.

Creating a database

Let’s create a new database:

String dbName = "mydb";
try {
  arangoDB.createDatabase(dbName);
  System.out.println("Database created: " + dbName);
} catch(ArangoDBException e) {
  System.err.println("Failed to create database: " + dbName + "; " + e.getMessage());
}

After executing this program the console output should be:

Database created: mydb

Creating a collection

Now let’s create our first collection:

String collectionName = "firstCollection";
try {
  CollectionEntity myArangoCollection=arangoDB.db(dbName).createCollection(collectionName);
  System.out.println("Collection created: " + myArangoCollection.getName());
} catch(ArangoDBException e) {
  System.err.println("Failed to create collection: " + collectionName + "; " + e.getMessage());
}

After executing this program the console output should be:

Collection created: firstCollection

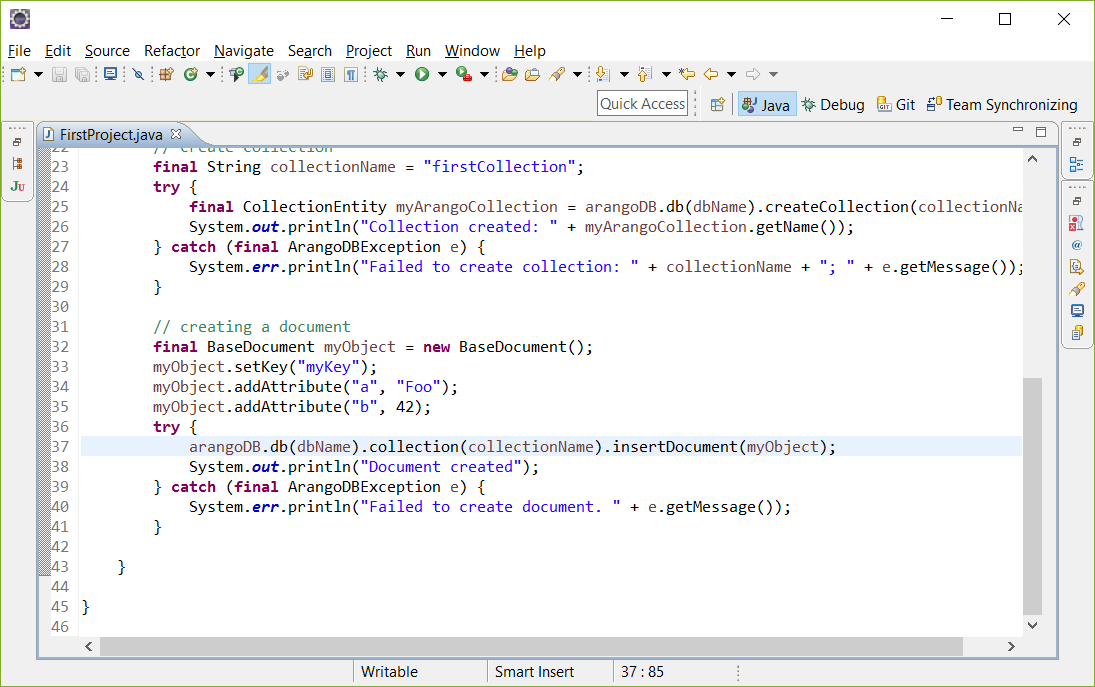

Creating a document

Now we create a document in the collection. Any object can be added as a document to the database and be retrieved from the database as an object.

For this example we use the class BaseDocument, provided with the driver. The attributes of the document are stored in a map as key<String>/value<Object> pair:

BaseDocument myObject = new BaseDocument();
myObject.setKey("myKey");
myObject.addAttribute("a", "Foo");
myObject.addAttribute("b", 42);
try {
  arangoDB.db(dbName).collection(collectionName).insertDocument(myObject);
  System.out.println("Document created");
} catch(ArangoDBException e) {
  System.err.println("Failed to create document. " + e.getMessage());
}

After executing this program the console output should be:

Document created

Some details you should know about the code:

  • setKey() sets the key value of the new object
  • addAttribute() puts a new key/value pair into the object
  • each attribute is stored as a single key value pair in the document root

Read a document

To read the created document:

BaseDocument myDocument = arangoDB.db(dbName).collection(collectionName).getDocument("myKey", BaseDocument.class);
if (myDocument != null) {
  System.out.println("Key: " + myDocument.getKey());
  System.out.println("Attribute a: " + myDocument.getAttribute("a"));
  System.out.println("Attribute b: " + myDocument.getAttribute("b"));
} else {
  System.err.println("Failed to get document: myKey");
}

After executing this program the console output should be:

Key: myKey
Attribute a: Foo
Attribute b: 42

Some details you should know about the code:

  • getDocument() returns the stored document data in the given JavaBean (BaseDocument)

Read a document as Jackson JsonNode

You can also read a document as a Jackson JsonNode:

ObjectNode myDocument = arangoDB.db(dbName).collection(collectionName).getDocument("myKey", ObjectNode.class);
if (myDocument != null) {
  System.out.println("Key: " + myDocument.get("_key").textValue());
  System.out.println("Attribute a: " + myDocument.get("a").textValue());
  System.out.println("Attribute b: " + myDocument.get("b").intValue());
} else {
  System.err.println("Failed to get document: myKey");
}

After executing this program the console output should be:

Key: myKey
Attribute a: Foo
Attribute b: 42

Some details you should know about the code:

  • getDocument() returns the stored document data in the VelocyPack format (VPackSlice)

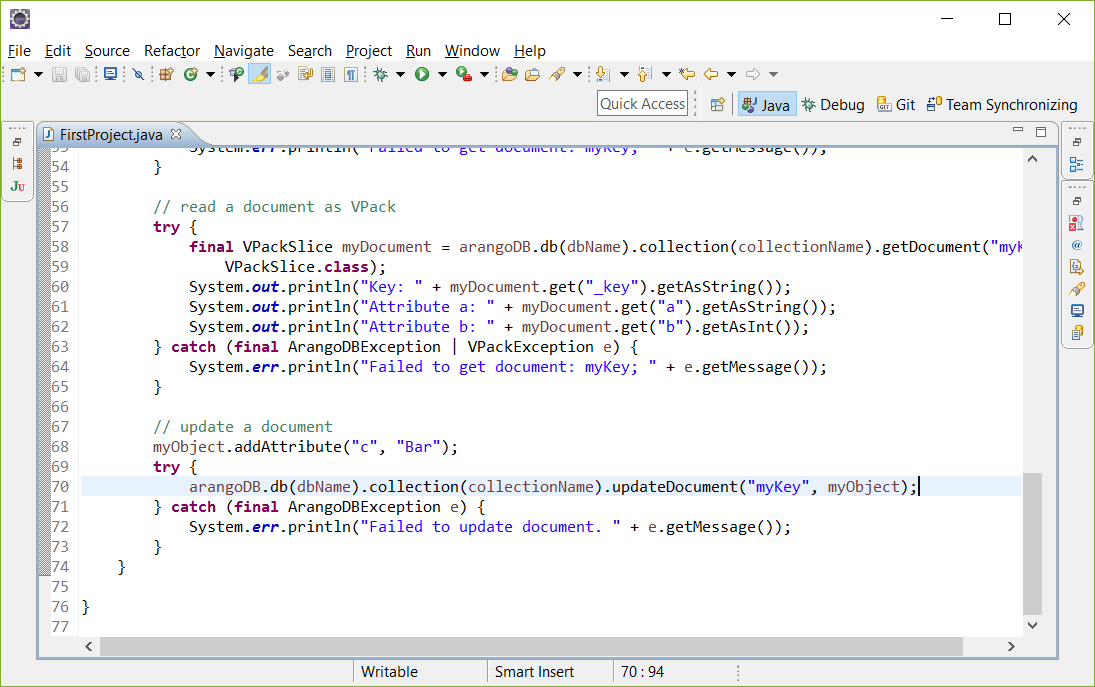

Update a document

myObject.addAttribute("c", "Bar");
try {
  arangoDB.db(dbName).collection(collectionName).updateDocument("myKey", myObject);
} catch (ArangoDBException e) {
  System.err.println("Failed to update document. " + e.getMessage());
}

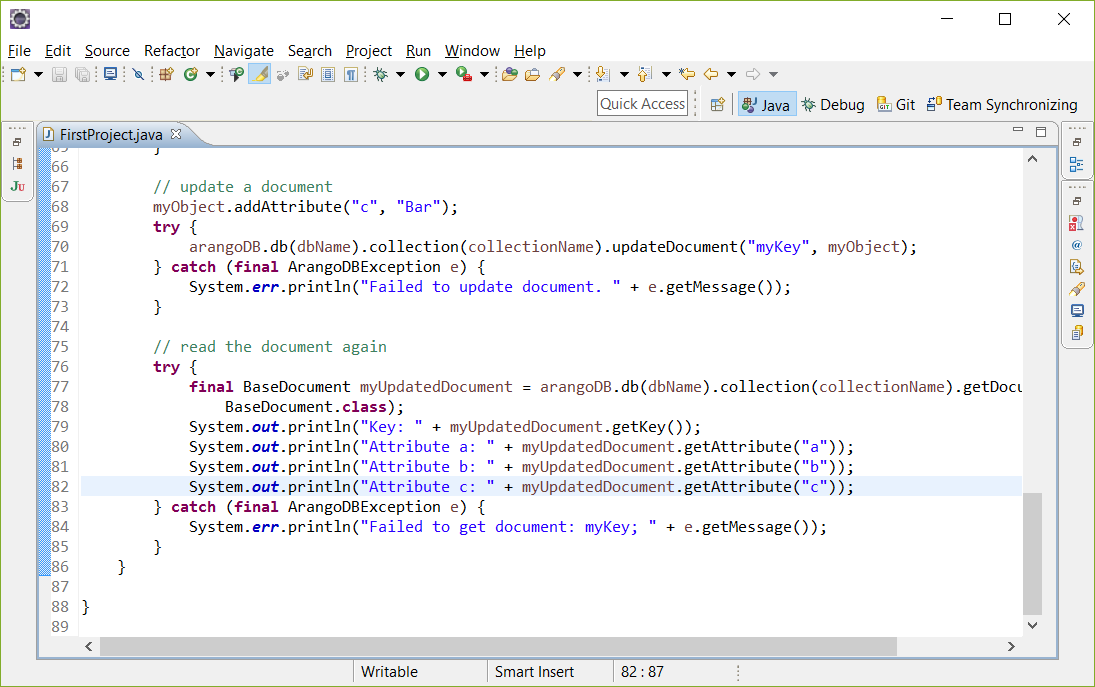

Read the document again

Let’s read the document again:

try {
  BaseDocument myUpdatedDocument = arangoDB.db(dbName).collection(collectionName).getDocument("myKey", BaseDocument.class);
  System.out.println("Key: " + myUpdatedDocument.getKey());
  System.out.println("Attribute a: " + myUpdatedDocument.getAttribute("a"));
  System.out.println("Attribute b: " + myUpdatedDocument.getAttribute("b"));
  System.out.println("Attribute c: " + myUpdatedDocument.getAttribute("c"));
} catch (ArangoDBException e) {
  System.err.println("Failed to get document: myKey; " + e.getMessage());
}
Key: myKey
Attribute a: Foo
Attribute b: 42
Attribute c: Bar

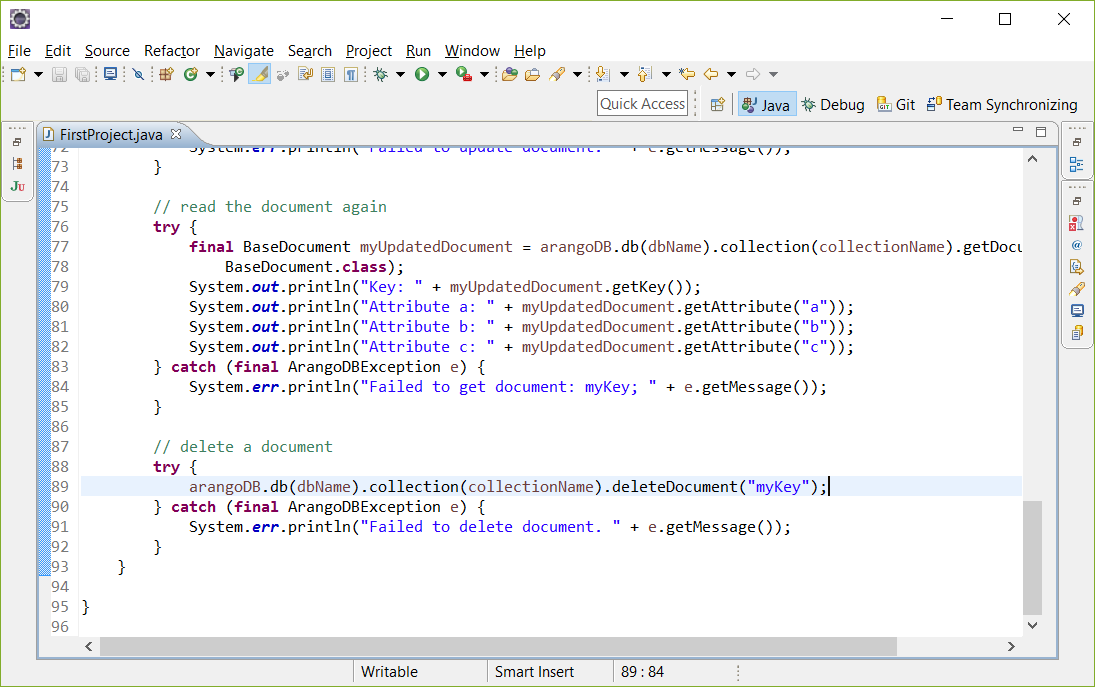

Delete a document

Let’s delete a document:

try {
  arangoDB.db(dbName).collection(collectionName).deleteDocument("myKey");
} catch (ArangoDBException e) {
  System.err.println("Failed to delete document. " + e.getMessage());
}

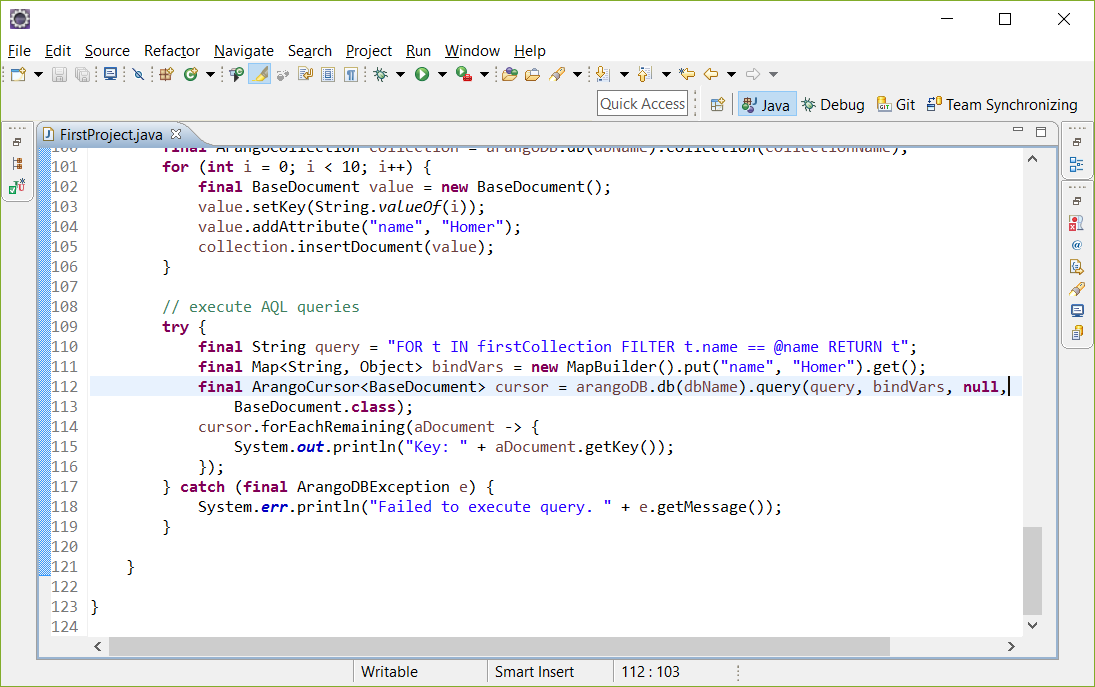

Execute AQL queries

First we need to create some documents with the name Homer in collection firstCollection:

ArangoCollection collection = arangoDB.db(dbName).collection(collectionName);
for (int i = 0; i < 10; i++) {
  BaseDocument value = new BaseDocument();
  value.setKey(String.valueOf(i));
  value.addAttribute("name", "Homer");
  collection.insertDocument(value);
}

Get all documents with the name Homer from collection firstCollection and iterate over the result:

try {
  String query = "FOR t IN firstCollection FILTER t.name == @name RETURN t";
  Map bindVars = Collections.singletonMap("name", "Homer");
  ArangoCursor cursor = arangoDB.db(dbName).query(query, bindVars, null, BaseDocument.class);
  cursor.forEachRemaining(aDocument -> {
    System.out.println("Key: " + aDocument.getKey());
  });
} catch (ArangoDBException e) {
  System.err.println("Failed to execute query. " + e.getMessage());
}

After executing this program the console output should look something like this:

Key: 1
Key: 0
Key: 5
Key: 3
Key: 4
Key: 9
Key: 2
Key: 7
Key: 8
Key: 6

Some details you should know about the code:

  • the AQL query uses the placeholder @name which has to be bind to a value
  • query() executes the defined query and returns a ArangoCursor with the given class (here: BaseDocument)
  • the order is not guaranteed

Delete a document with AQL

Now we will delete the document created before:

try {
  String query = "FOR t IN firstCollection FILTER t.name == @name "
    + "REMOVE t IN firstCollection LET removed = OLD RETURN removed";
  Map bindVars = Collections.singletonMap("name", "Homer");
  ArangoCursor cursor = arangoDB.db(dbName).query(query, bindVars, null, BaseDocument.class);
  cursor.forEachRemaining(aDocument -> {
    System.out.println("Removed document " + aDocument.getKey());
  });
} catch (ArangoDBException e) {
  System.err.println("Failed to execute query. " + e.getMessage());
}

After executing this program the console output should look something like this:

Removed document: 1
Removed document: 0
Removed document: 5
Removed document: 3
Removed document: 4
Removed document: 9
Removed document: 2
Removed document: 7
Removed document: 8
Removed document: 6
